CE Certificated Hydraulic orange peel grab scrap grapple for excavators
The orange peel grapple is designed for gripping and handling of materials, generally used in various areas such as handling municipal solid waste, scrap, etc. As a mobile grab machine, it can meet the demand for loading, unloading, stacking, un-stacking, feeding and placing operations of various scrap steel materials.
Orange peel grapple can be used by connecting the excavator, and the orange peel grapple is safe and convenient. This machine has been designed for heavy duty work such as handling rocky beaches of boulder or materials with heavy weight. orange peel grapple can also be mounted on a crane or on a truck. High quality materials are used in manufacturing to ensure that the machine quality will be long-lasting and work in the most difficult situations.
| Model | Unit | HMB400 | HMB600 | HMB800 | HMB1000 |
| Open Width(A) | mm | 1260 | 1580 | 1975 | 2275 |
| Close Width(B) | mm | 970 | 1210 | 1510 | 1740 |
| Height(C) | mm | 890 | 1110 | 1390 | 1600 |
| Height(D) | mm | 1060 | 1325 | 1660 | 1910 |
| Cylinder Thrust | ton | 4 | 6.5 | 10.5 | 13 |
| Oil Pressure | Mpa | 18-21 | 21-25 | 21-25 | 21-25 |
| Excavator Weight | ton | 5-9 | 10-16 | 17-23 | 24-30 |
| Weight | kg | 350-400 | 700-800 | 950-1100 | 1500-1700 |
1)Driven by M+S motor with brake valve, cylinder with USA safety valve.
2)Unlimited 360 degrees clockwise and counterclockwise rotation,operator can control the rotating speed.
3) The built-in balancing valve of oil cylider has better impact resistance , and can makes it operate smoothly.
4) Durable material make it more stablity and durability.
Meet the demand for loading, unloading, stacking, un-stacking, feeding and placing operations of various scrap steel materials.gripping and handling of materials, generally used in various areas such as handling municipal solid waste, scrap, etc.

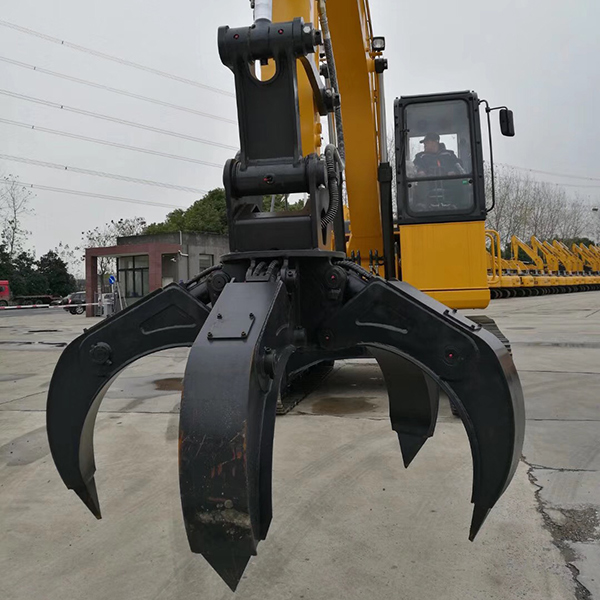

Orange peel grapple
Orange peel grapple
How to choose right Orange peel grapple for your excavator?
1. Make sure of the weight of your carrier.
2. Make sure of the oil flow of your excavator.
3. Make sure of the wood or stone which you want to carry.
- Unlimited clockwise and anti-clockwise 360° rotatable swing bearing system;
- Equipped with a German-made M+S motor, more powerful and stable.
- Using NM500 steel and all pins are heat-treated making our grapple with a very long service life.
- Original German oil seals, balance valve, safety valve making cylinder more durable and safe.
- Using handles to operate the grapple which is more comfortable and flexible for the driver.
- All pins are heat-treated, firm, and durable.
- 6 months free replacement;12 months quality warranty.
